MR20 Series Intelligent Industrial Robots

The MR20 intelligent robot polishing and deburring workstation is designed specifically for industrial parts. Its family-style appearance and fully modular design, along with dustproof transmission, ensure stable operation. The high-precision control system and human-machine interface support efficient polishing of workpieces up to 400x400x150mm. A dual-pallet system reduces waiting time, and quick-change grippers are compatible with a variety of products, making it an ideal choice for automated polishing.

	Grinding		Polishing
	Filing		Miling
	Scraping		Sawing

Category: MR series

Message Contact Us

Description

Robot Grinding and Polishing Product Specifications

Grinding Accuracy	±0.1mm
Maximum Workpiece Weight	12KG
Maximum Workpiece Size	400x400x150mm
Robot Payload	25/35kg
Rated Voltage (V)	AC 380V
Overall Dimensions (mm)	375024002600
Rated Power (KW)	8.5
Rated Current (A)	17
Total Weight (kg)	5000
Processing Material	Aluminum Casting
Robot Brand	FANUC Six-Axis Articulated Robot

Robot Grinding and Polishing Product Features:

For aluminum die-casting parts under 1000T

Fully enclosed sheet metal housing to prevent dust from flying everywhere

Modular design for easy maintenance

Robot end-of-arm tooling payload 25kg, workpiece weight controlled within 12kg

The robot picks up the workpiece for grinding and deburring

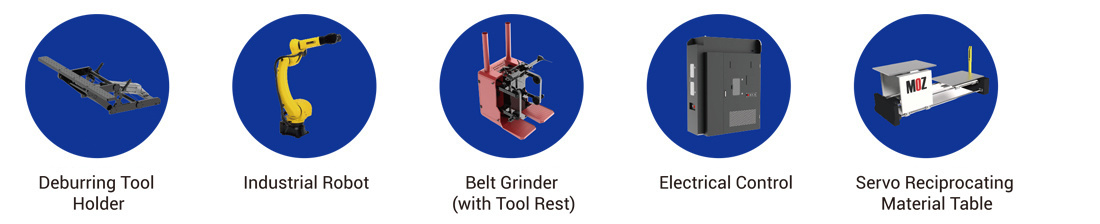

Equipped with a floating spindle, rigid spindle, pneumatic spindle, and floating file machine

Functions such as broken blade/sand belt detection, tool life management, and production capacity management

The sanding machine tensioning mechanism is hidden, has a high dustproof rating, and a long service life

Double-layer servo feed table, stable and accurate positioning

Feed table floating function, improving grasping adaptability

Optional configurations for robot grinding and polishing:

Force control grinding system

Dust removal device

Floating file machine

Floating grinding machine

Applicable scope of robot grinding and polishing equipment:

Grinding, polishing, deburring, chamfering, others

Keywords: MR20 Series Intelligent Industrial Robots
