MR12S Series Intelligent Industrial Robots

The MR20S mart Robot Deburring Workstation, designed for industrial components, features a unifiedappearance and modular design for stable, dust-proof operation. its high-precision control system anduser interface efficiently handle 400x400x150mm workpieces. Dual tables reduce downtime, andquick-change grippers support various products, making it ideal for automated polishing.

	Grinding		Polishing
	Filing		Miling
	Scraping		Sawing

Category: MR series

Message Contact Us

Description

Core Parameters

Polishing Precision	±0.1mm
Maximum Workpiece Weight	3KG
Maximum Workpiece Size	250x250x80mm
Robot Payload	12kg
Rated Voltage (V)	AC 380V
Dimensions (mm)	400022002500
Rated Power (KW)	15
Rated Current (A)	30
Overall Weight (kg)	5500
Processing Material	Aluminum Casting
Robot Brand	Fanuc Six-Axis Articulated Robot

Product Features

1. Dual robot workstations, efficient operation

2. Fully enclosed sheet metal casing, preventing dust from scattering

3. Modular design, convenient maintenance

4. Robot picks up workpiece for polishing and deburring

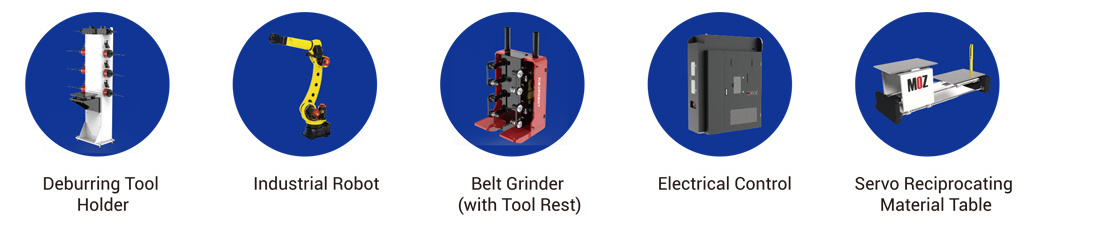

5. Equipped with floating spindle, rigid spindle, pneumatic spindle, and floating file machine

6. Broken blade/sand belt detection, tool life management, and production capacity management functions

7. Hidden design of the sanding machine tensioning mechanism, high dustproof grade, and long service life

8. Double-layer servo feed table, stable and high-precision positioning

9. Floating function of the feed table, improving grasping adaptability

Optional Configurations for Robot Polishing

Force control polishing system Dust removal device Floating file machine Floating polishing machine

Application Range of Robot Polishing

Polishing, buffing, deburring, chamfering, and other operations
