MT30Z Series Intelligent Industrial Robots

The MT30 intelligent robot polishing and deburring workstation is specially designed for large castings. It features a unified appearance, anti-transmission, and fully modular design, equipped with a high-precision control system and human-machine interface. The quick clamping mechanism ensures strong compatibility, improving casting processing efficiency and quality.

	Grinding		Polishing
	Filing		Miling
	Scraping		Sawing

Category: MT series

Message Contact Us

Description

Core Parameters

Polishing Precision	±0.1mm
Maximum Workpiece Weight	50KG
Maximum Workpiece Size	1400x900x200mm
Robot Payload	25/35kg
Rated Voltage (V)	AC 380V
External Dimensions (mm)	390029502510
Rated Power (KW)	8
Rated Current (A)	16
Total Weight (kg)	5000
Processing Material	Aluminum Casting
Robot Brand	Fanuc Six-Axis Articulated Robot

Product Features

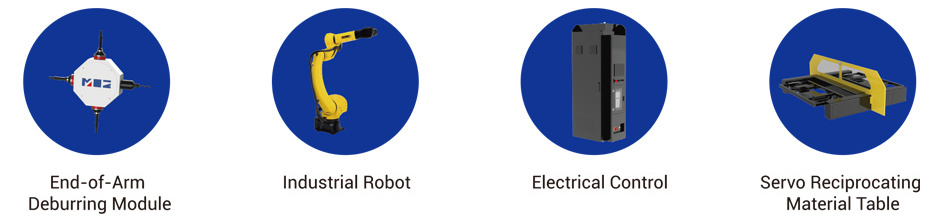

1. The entire equipment consists of an industrial robot, loading/processing turntable, loading position, operation panel, teach pendant, safety door, inspection window, protective sheet metal, etc.

2. The robot end-effector constant force floating device can be equipped with 1-4 tools

3. Equipped with high-precision sensors and a vision system to ensure polishing quality and precision

4. Adapts to workpieces of different shapes and sizes, realizing automated operation

5. Continuous polishing and deburring operations to improve production efficiency

Operation Method

Using force control + 4.5kw electric main spindle + indexing table, the robot holds a tool to deburr the workpiece

Application Range

Remove product burrs and cracks, suitable for new energy battery boxes, etc.

Keywords: MT30Z Series Intelligent Industrial Robots
